Description
Signature Sound, Compact Form.
The Deep Forest finish is a rich, organic take on classic black—a modern statement in any room.
Specifications
Loudspeakers
1x Tweeter aluminium dome (new-gen)
1x Medium aluminium dome (new-gen)

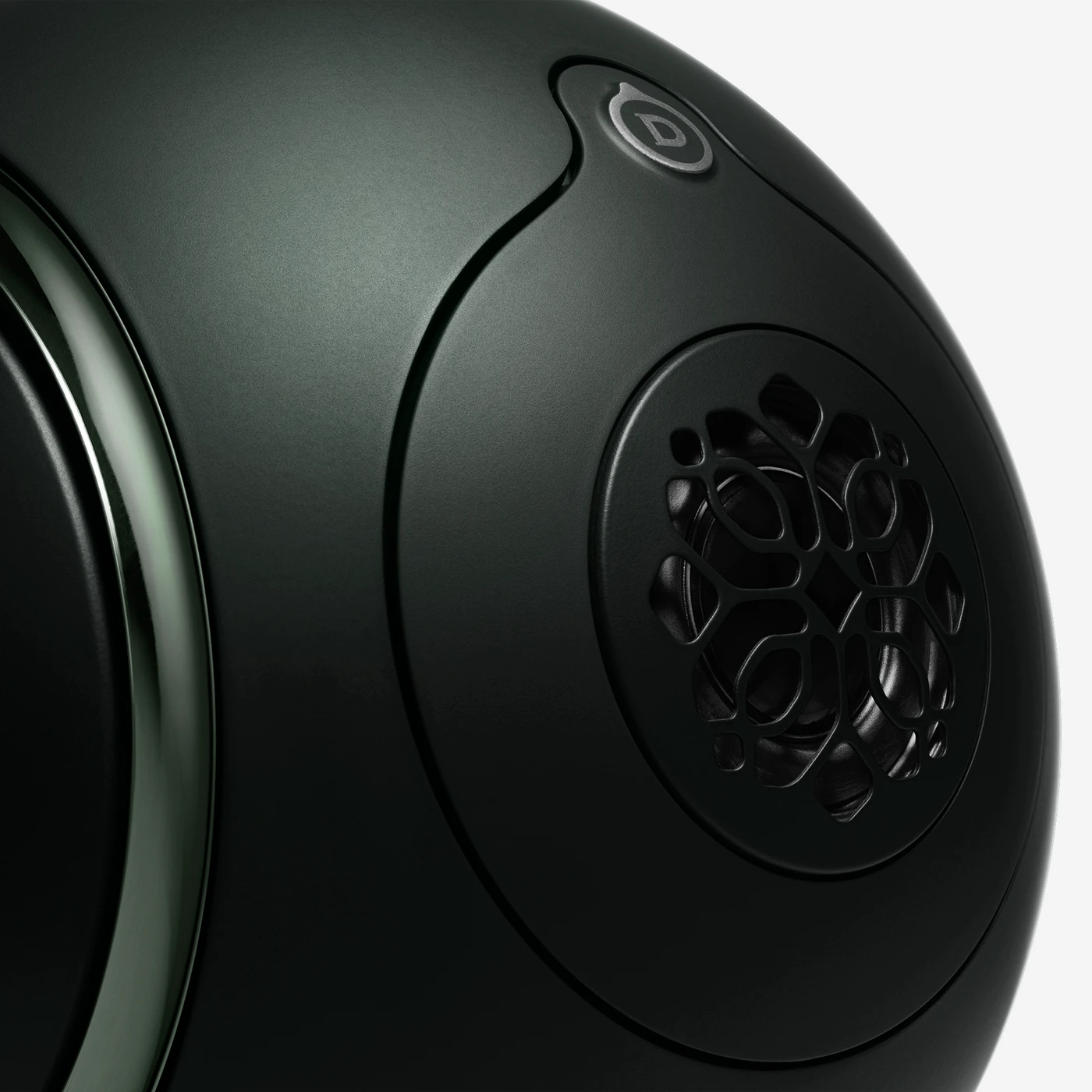

2x Woofers ABS dome (new-gen)
Processor
SoC NXP i.MX 8M Nano 4 x 1.5 GHz
Side Plating
Body: ultra-mate painting – PANTONE 9102C

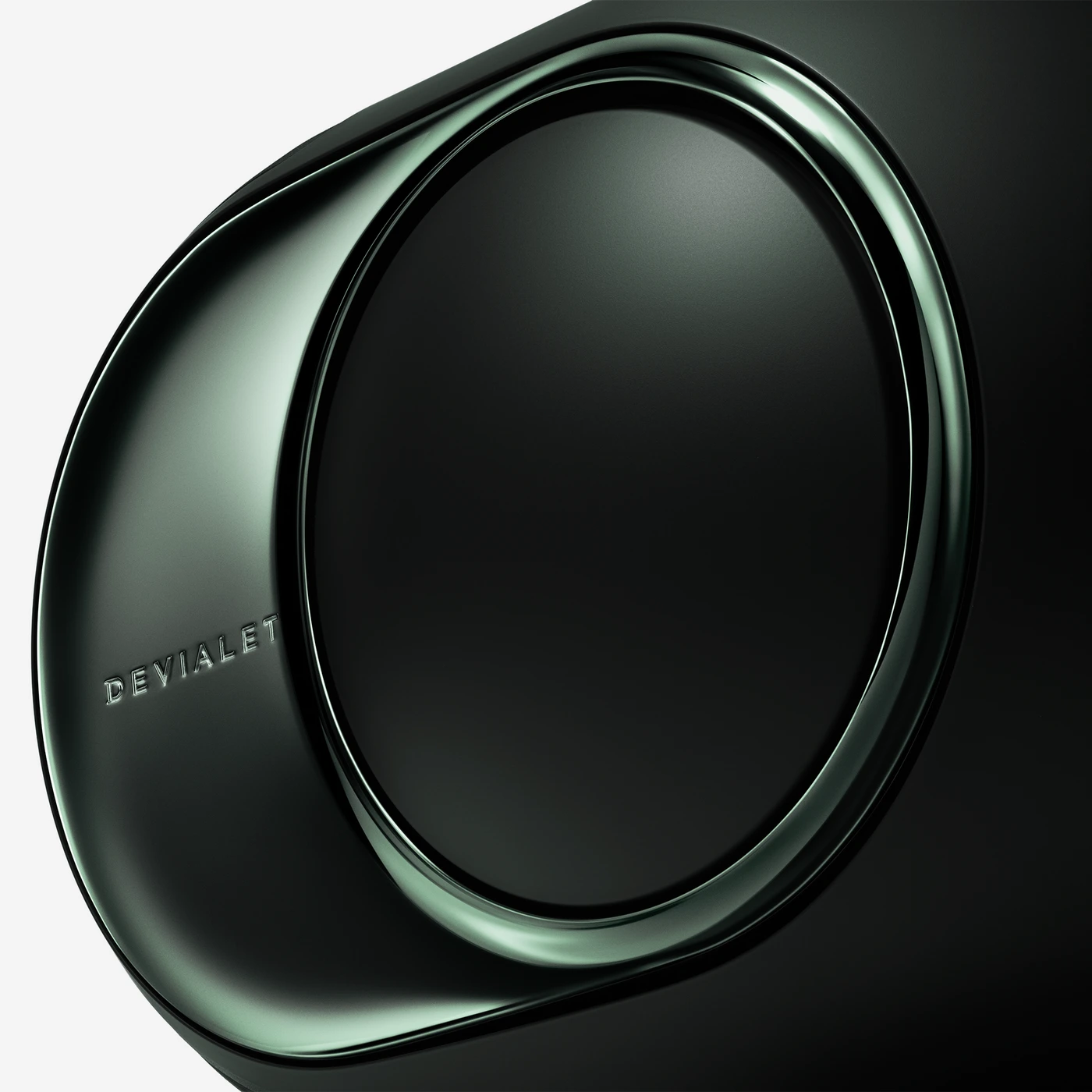

Side panels: Plastic – mirror polished – PVD PANTONE METAL 8380
Power Supply
100-240 V~50/60Hz
Exclusive technologies
ADH® next-gen, SAM®, HBI®, AVL™, DAC Magic Wire®, Devialet ASIC, Devialet Operating System DOS 3
Dimensions & Weights
Dimension
Speaker: Width: 246 mm / 9.7 in | Depth: 342 mm / 13.5 in | Height: 255 mm / 9.7 in
Packaging: Width: 287 mm / 11.3 in | Depth: 446 mm / 17.6 in | Height: 280 mm / 11.0 in
Weight
Speaker 11.1 kg / 24.5 lbs
Packaging : 12.3 kg / 27.1 lbs
Performances
Maximum Sound Level
108 dB SPL @ 1m
Total amplification power
1100W
Frequency response (bandwidth)
14 Hz – 35 kHz (+/- 6 dB)
Features
Synchronisation
Phantom synchronisation via Wi-Fi, Ethernet.
App
Devialet (iOS and Android)
Connectivity
AirPlay
Google Cast
Spotify Connect – Supports lossless
Tidal Connect
UPnP
Roon Ready (RAAT)
Bluetooth 5.3 (SBC and AAC codecs)
1x TOSLINK® (optical)
Qobuz Connect
Network
WiFi 6 (2.4 GHz and 5 GHz)

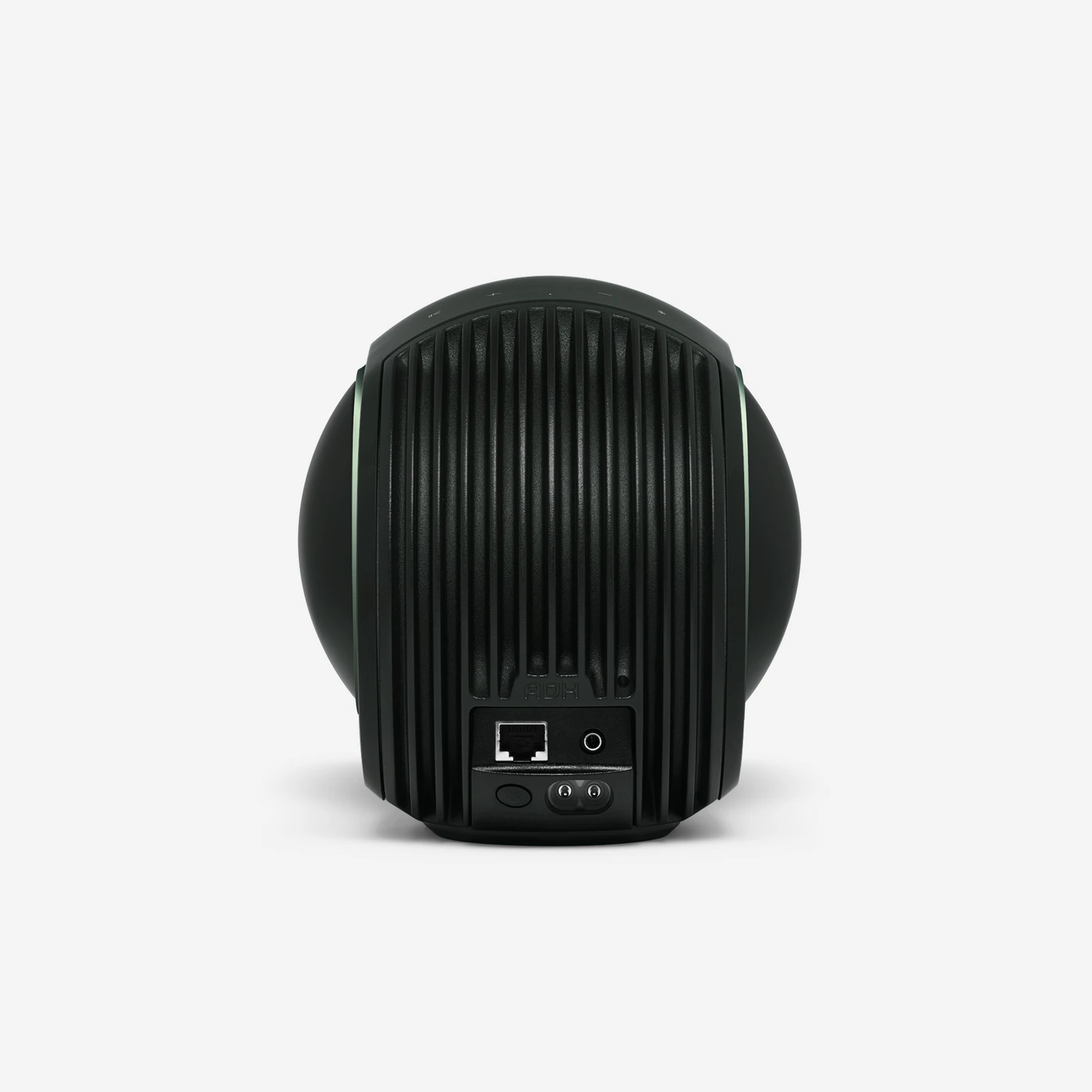

RJ45 Ethernet 100/1000 Mbps
What's in the box

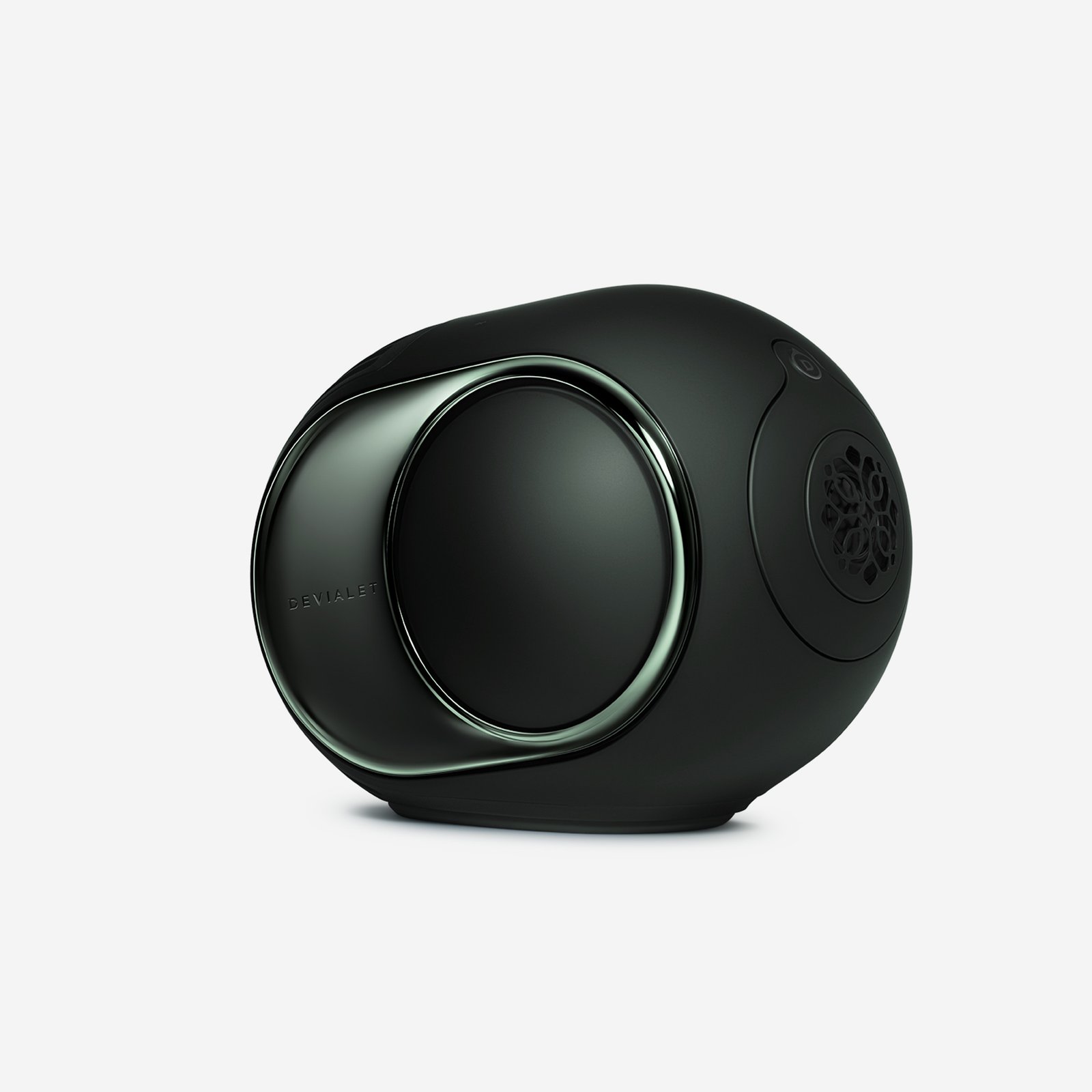

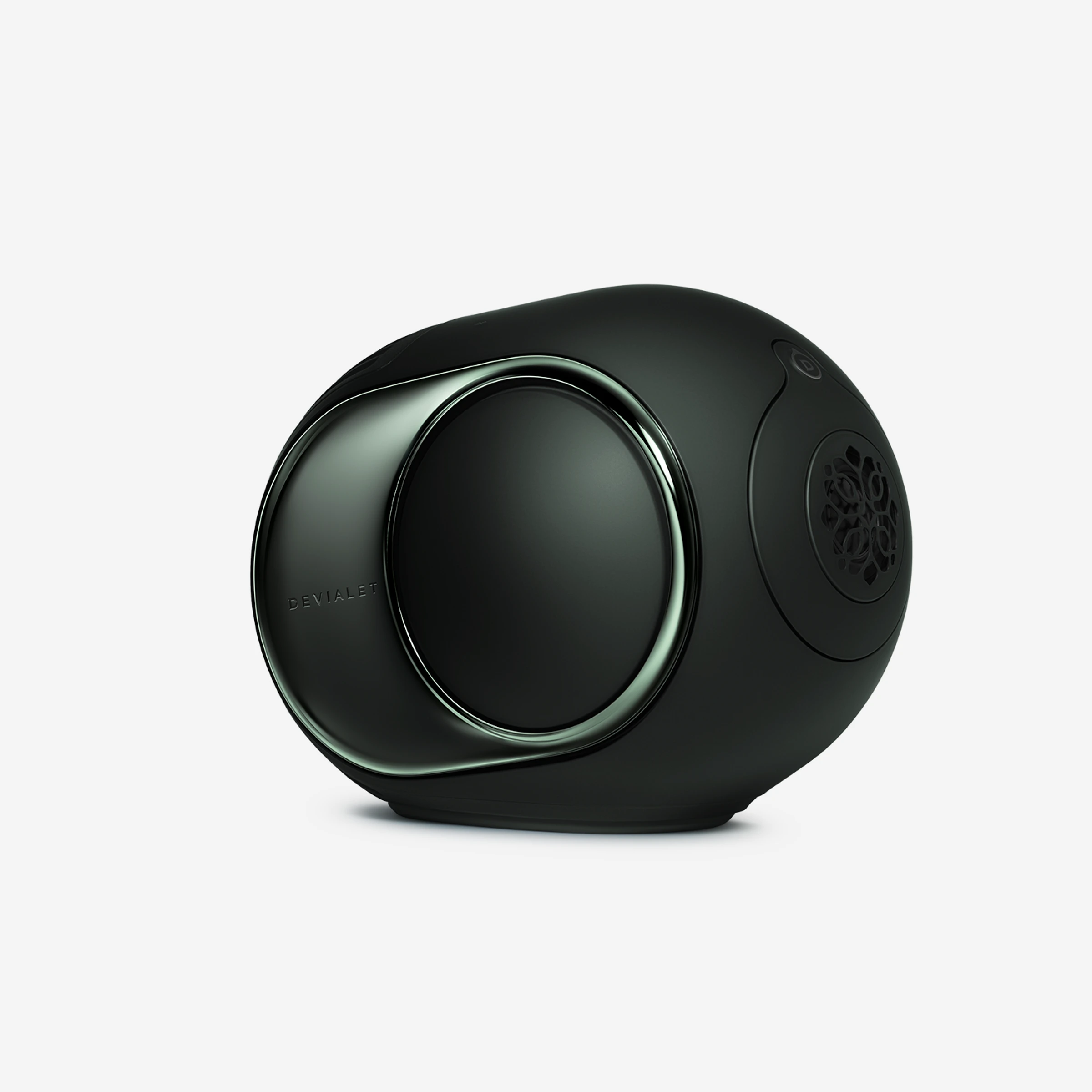

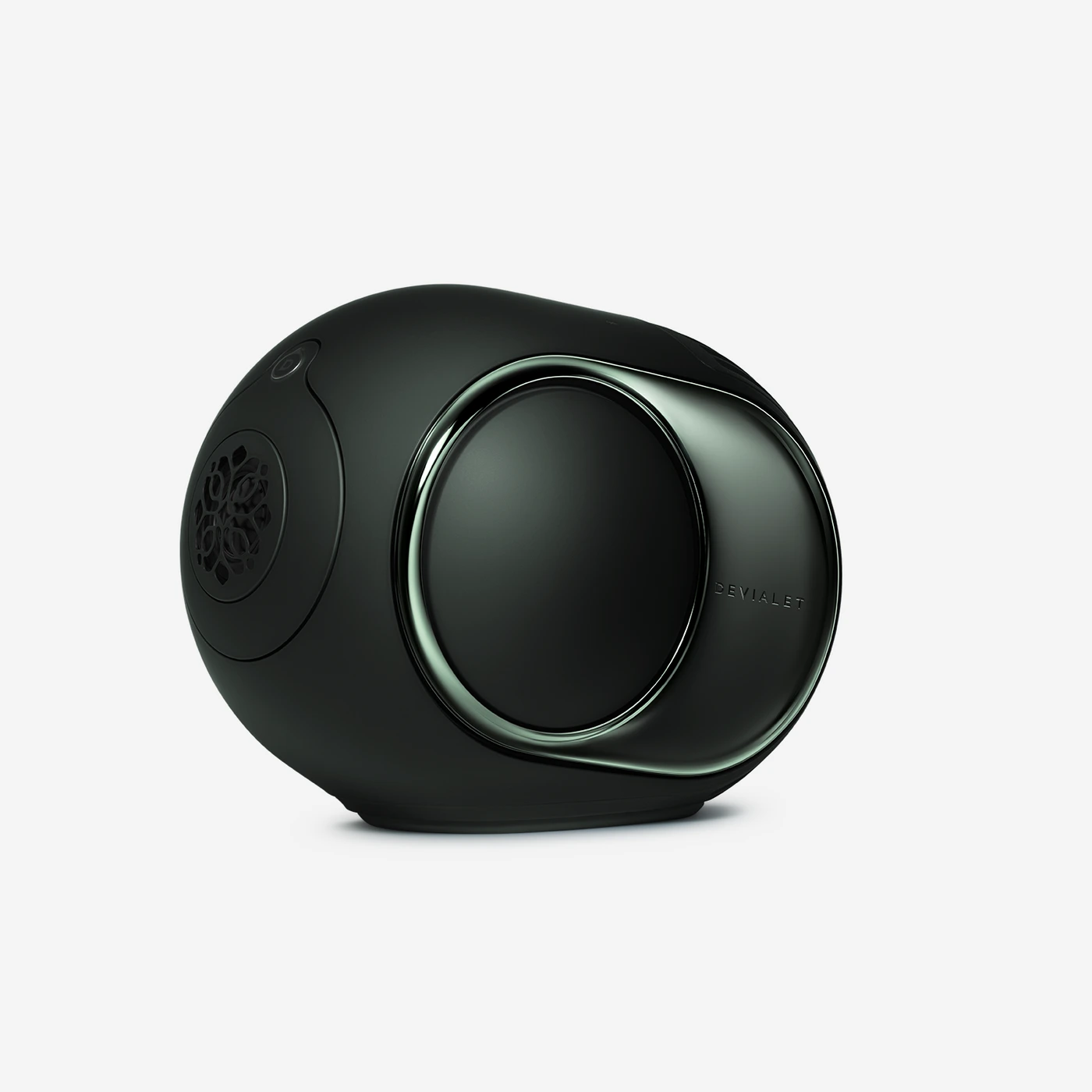

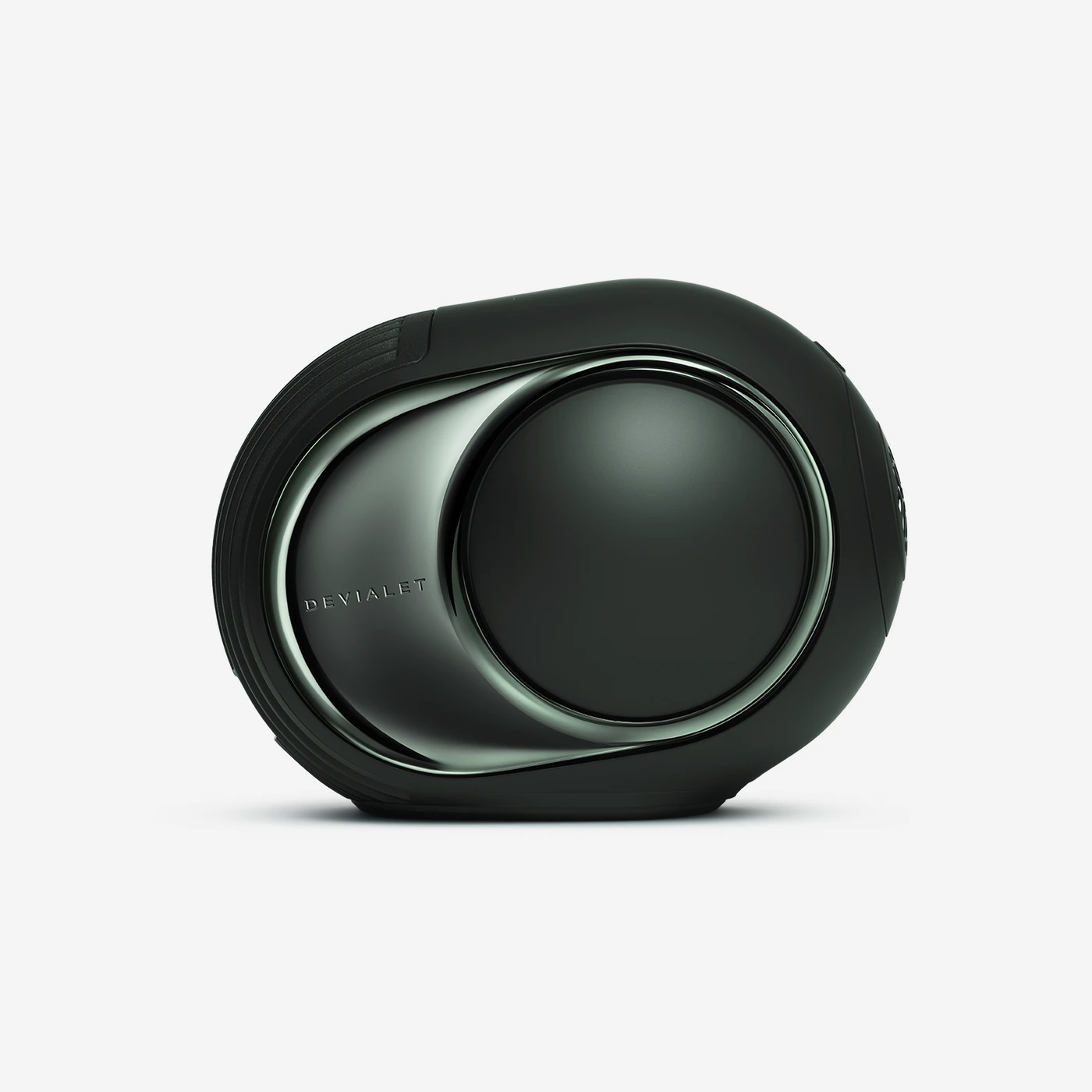

Devialet Phantom Ultimate 108 dB
Power cable
Documentation
