Description
Signature Sound, Compact Form.

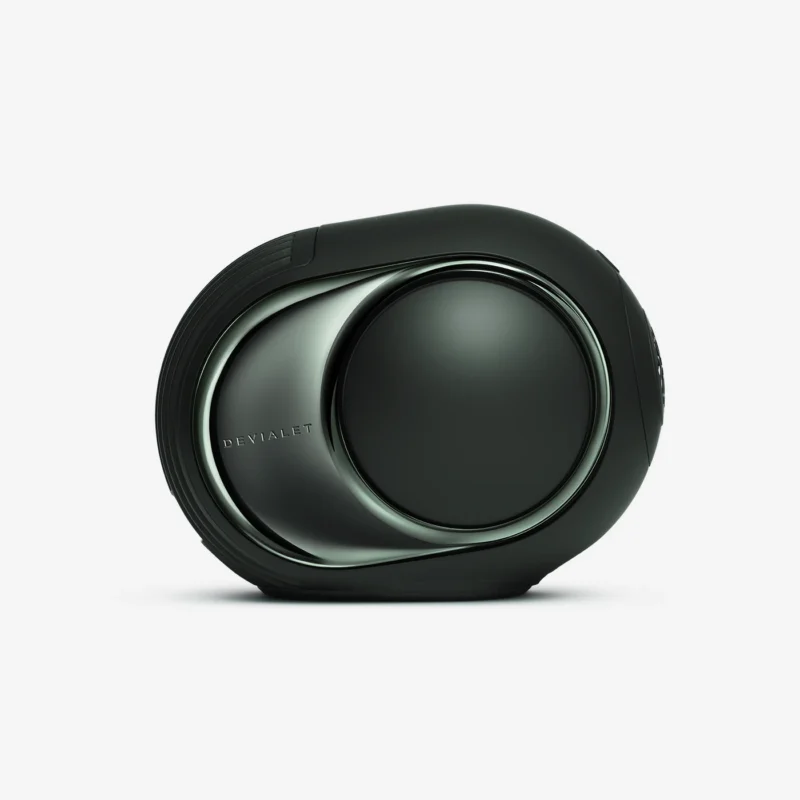

The Deep Forest finish is a rich, organic take on classic black—a modern statement in any room.
Specifications
Loudspeakers
1x Full-range aluminium dome
2x Woofers aluminium dome
Processor
SoC NXP i.MX 8M Nano 4 x 1.5 GHz
Side Plating
Body: ultra-mate painting – RAL DESIGN 140 20 05
Side panels: Plastic – brillant mirror polished – PVD PANTONE METAL 8523C
Power Supply
100-240 V~50/60Hz
Exclusive technologies
ADH® next-gen, SAM®, HBI®, AVL™, DAC Magic Wire®, Devialet ASIC, Devialet Operating System DOS 3
Dimensions & Weights
Dimension
Speaker: Width: 157 mm / 6.2 in | Depth: 219 mm / 8.6 in | Height: 168 mm / 6.6 in
Packaging: Width: 210 mm / 8.3 in | Depth: 285 mm / 11.2 in | Height: 250 mm / 9.8 in
Weight
Speaker 4.3 kg / 9.5 lbs
Packaging : 5 kg / 11 lbs
Performances
Maximum Sound Level
98 dB SPL @ 1m
Total amplification power
400W
Frequency response (bandwidth)
18 Hz – 25 kHz (+/- 6 dB)
Features
Synchronisation
Phantom synchronisation via Wi-Fi, Ethernet.
App
Devialet (iOS and Android)
Connectivity
AirPlay
Google Cast
Spotify Connect – Supports lossless
Tidal Connect
UPnP
Roon Ready (RAAT)
Bluetooth 5.3 (SBC and AAC codecs)
1x TOSLINK® (optical)
Qobuz Connect
Network
WiFi 6 (2.4 GHz and 5 GHz)
RJ45 Ethernet 100/1000 Mbps
What's in the box
Devialet Phantom Ultimate 108 dB
Power cable
Documentation
